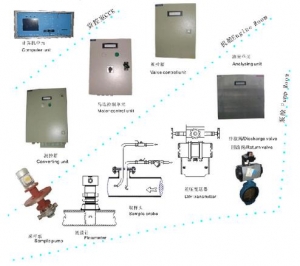

To reduce the pollution of the marine vessel,the RD-ODME Oil Discharge Monitoring Equipment has been designed to provide device for monitoring, recording and controlling the ballast discharge in accordance with the latest requirement ofMEPC 108(49) and Revised Annex I of MARPOL 73/78, as well as suitable for discharge of bildge slop.The device is approvaled by CCS and LR, equiped with CCS TYPE APPROVAL, LR TYPEAPPROVAL and EC TYPE EXAMINATION (MODULE B) CERTIFCATE.

Technical spec

System power supply: AC220±10%V, 50Hz±5%

Circumstance Temperature:0℃～50℃

Circumstance humidity: 80%

Measuring range: 0-1000ppm

Measuring accuracy: 10%FS

Response time: <40S

Overboard valve air source:0.7Mpa

Return valve air source:0.7Mpa
