SAMYUNG SFX-100
Printer Friendly Tell a Friend

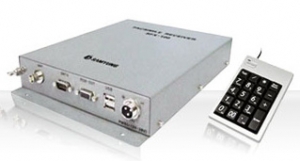

SAMYUNG SFX-100
Price:


 Description

Features

  • Weather Fax for a generic LCD monitor/PC/Laptop, Printer,Keyboard to print message / weather chart.
  • Stored Max 20 images Data
  • To select stored image by user friendly soft key mode.
  • Receive standard weather information from WMO (World Meteorological Organization)
  • Clear image by anti-noise device.
  • Select Black, Yellow and black, Green and Black, Gay-Scale in screen.
  • Auto tune to optimize receiving quality.
  • Connect to the best station by setting automatic receive channel.
  • Stored up to 16,000 letters message each channel in NAVTEX mode.

Specifications

  • Frequency Range : FAX(0.5MHz~25MHz) NAVTEX(490KHz/4209.5KHz. 518KHz)
  • Channel in available : 320 channels
  • Storage : FAX(20 Pictures), NAVTEX(115 massage/Max. 16,000 letters per channel)
  • Receive type : Double Super Heterodyne
  • Modulator : FAX(F3C/J3C), NAVTEX(F1B)
  • Interface : LCD Monitor, KeyBoard, Printer
  • Power Supply : 10.8V ~ 31.2VDC, 1A
  • Antenna : Wire Antenna, Whip Antenna

Components

 Standard

  • Weather Facimile Receiver (SFX-100) 1 unit
  • Remote controller 1 unit
  • Installation materials, Spare parts, Manual 1 set

 User’s Options

  • LCD Monitor
  • Printer

  Optional

  • Whip Antenna(DAF-30R)
  • Power Supply(SP-300AD)
  • Key Board

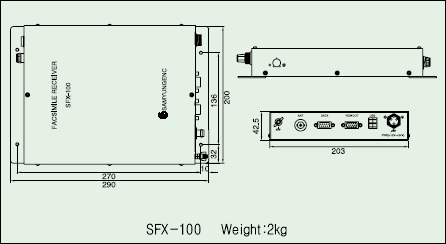

Dimensions

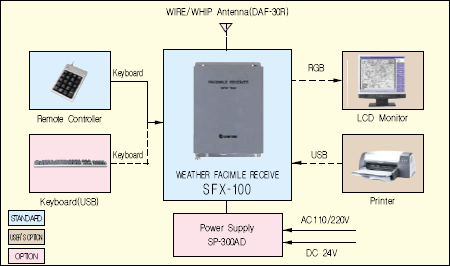

Configuration
