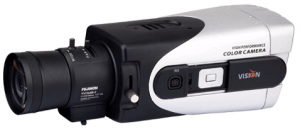

C/CS Box Camera (Wide dynamic True Day & Night camera)
Printer Friendly Tell a Friend
C/CS Box Camera  (Wide dynamic True Day & Night camera)
Price:


Highlights:
- Super Wide Dynamic (sWDR) - Easy-to-user OSD functions (possible to control locally or remotely)
- C/CS and Flange-back focus adjustment lever built-in - IR Sensitive mechanical Day/Night filter system built-in
- True Color at Day and Real B/W at Night conversion - IR Connection terminals (two types) built-in
- High performance 1/3" Sony Double Scan CCD - High resolution of 540 TVL at Day / 560 TVL Night
- Greatly enhanced Sensitivity of 0.0001 Lux at F1.2 - Roll free picture with 24VAC Line Lock
- Auto DC/VIDEO iris - DC12V or DC12V/AC24V Non-polarity Dynamic dual power input
- Optic photo sensor built-in - Camera ID
- Digital zoom (1x~3x) - Digital Slow Shutter (DSS)
- Privacy masking - RS-485

 Description

This model is a WDR day/night camera specially designed for the professional Day/Night surveillance. At daytime, the camera features a 540TVL Color image and at nighttime, the image is converted into real B/W mode (Color signal removed) resulting in the resolution and sensitivity greatly enhanced. The unique wide dynamic technology with smart & easy-to-use OSD settings provides user with always the optimum solution for the best image quality at various situations. The camera incorporates an Intelligent CDS sensor and mechanical day/night dual filter system so that the filter is accurately switched on and off with the image changed from Color to B/W or B/W to Color mode at 5 lux darkness. With user friendly IR Link outputs, installers can easily connect any type of IR illuminator on the spot. Specially designed power circuit enables the camera operates from DC11V to DC40V and from AC15V to AC30V maximizing the reliability of the unit from power fluctuations. This wide tolerance accepts most of unstable power supplies without failure before or after installation.

Image Sensor 1/3" Sony double scan CCD
Effective Pixels NTSC : 768(H) x 494(V)      PAL : 752(H) x 582(V)
H.Resolution NTSC : 540 TV Lines (at Day) / 560 TV Lines (at Night)
PAL : 520 TV Lines (at Day) / 540 TV Lines (at Night)
Synchronizing system Internal / Line lock
Scanning system NTSC 525 Lines    PAL 625 Lines    2:1 Interlaced
Video output 1.0Vp-p Composite. 75 Ohms
S/N Ratio More than 48dB (AGC Off)
Min. Illumination 0.2 Lux at F1.2 (DSS off) / 0.0001 Lux at F1.2 (DSS on)
Back Light Compensation ON/OFF by OSD
Shutter Speed NTSC : 1/60~1/100,000 sec      PAL : 1/50~1/100,000 sec
Gamma correction Standard r=0.45
White Balance 2100˚K ~ 9100˚K Auto
ATW/Push Lock selectable by OSD
Gain Control Standard : -6dB ~ 42dB Auto / Maximum by OSD
Smear Effect 0.005%
Power source DC12V / AC24V Dual power / AC230V
Operating current 260mA at 12VDC, 130mA at 24VAC, 60mA at 230VAC
Lens C/CS Mount
Iris Control ESC / Auto by slide switch
Operating Temperature 14˚F ~ 122˚F (-10˚C ~ +50˚C)
Humidity Within 90% RH
Measurement (mm) 62(W) X 58(V) X 140(L)
Weight (Approx.g) 500
                      OSD Menu
WDR Auto / On / Off
White balance Atuo (ATW) / Push Lock / User selectable (Push: 1800˚K~10,500˚K)
Gain Control Low, Middle, High, Off Selectable
Shutter speed 1/60 - 1/120,000 sec (NTSC), 1/50 - 1/100,000 sec (PAL)
Digital Slow Shutter Off/2 x ~ 160 x (DSS)
Privacy Masking On/Off (4 programmable zones)
Digital zoom OFF, 1.5 x, 2 x, 3 x
