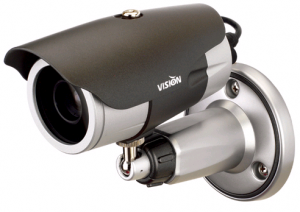

VARIFOCAL CAMERA (Day & Night Outdoor camera)

Description

Used with Sony Super HAD II CCD and its DSP technology, VB60CSHR reproduces extreme clear color image and resolution of 500TVL.

The image is instantly changed from Color to B/W at 5 lux automatically and its horizontal resolution at night is increased up to 560TVL like monochrome camera.

The external zoom & focus knob enables customer to control zoom/focus externally by hand.

This unit is passed IP67 test and guarantees moisture condensation free on the glass against any harsh weather condition

Image sensor	1/3" High Resolution Color Super HAD II CCD (SONY)
Effective Pixels	NTSC : 768(H) X 494(V) PAL : 752(H) X 582(V)
H.Resolution	NTSC : 500 TV Lines (at Day) / 560 TV Lines (at Night) PAL : 490 TV Lines (at Day) / 550 TV Lines (at Night)
Synchronizing system	Internal
Scanning system	NTSC 525 Lines PAL 625 Lines 2:1 Interlaced
Video output	1.0Vp-p Composite. 75 Ohms
S/N ratio	More than 50dB (AGC Off)
Min. Illumination	0.1 Lux at F1.6
Shutter Speed	NTSC : 1/60~1/100,000 sec PAL : 1/50~1/100,000 sec
Gamma correction	Standard r=0.45
White Balance	2100˚K ~ 9100˚K
Gain Control	Auto. 0dB ~ 32dB
Smear Effect	0.005%
Power source	DC12V
Operating current	120mA
Lens	4~9mm Varifocal Manual lens
Lens Option	9~22mm Varifocal Manual lens
Operating Temperature	14˚F ~ 122˚F (-10˚C ~ +50˚C)
Humidity	Within 90% RH
Measurement (mm)	60(D) X 127.5(L)
Weight (Approx.g)	700
