The Elite Series 570 Is a cost effective two wire, 4 to 20mA gauge pressure transmitter and is available in standard ranges from 1 bar to 600 bar. Optionally the unit can be factory scaled to customer requirements including compound ranges.
The Elite Series 570 Pressure transmitter employs a four active arm strain gauge bridge fused to a high purity alumina ceramic diaphragm, offering high natural output coupled with superb chemical and corrosion resistance. The sensor is housed within a stainless steel case with integral electronics and supplied with a plug and socket electrical connection. The process connection is a 1/4” BSP male thread as standard, 1/4" NPT male available on special request.
|

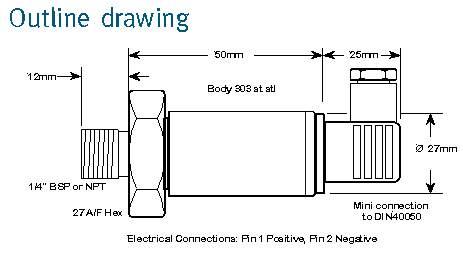

Specifications |
|
Body: |
303 stainless steel |
|
Diaphragm: |
96% pure alumina Ceramic |
|
Diaphragm Seal: |
Viton |
|
Standard ranges: |
1, 2, 3, 5, 10, 20, 50, 100, 200, 500 & 600bar |
|
Specific calibration: |
Available please refer to PSM |
|
Supply: |
10 to 32V DC |
|
Signal Output: |
4 - 20 mA DC |
|
Load: |
1kW at 30V dc supply |
|
Connection: |
Standard mini DIN plug to DIN 40050 |
|
Output—span: |
16mA +/- 1% of span at zero pressure |
|
Output—zero: |
4mA +/- 1% span |
|
Environmental Protection: |
IP65 |
|
Process temp: |
-25 to +80 deg C |
|
Maximum error: |
0.25% of span (best fit straight line) |
|
Thermal zero shift: |
<+/- 0.08% span per deg C |
|
Thermal Span shift: |
<+/- 0.04% reading/deg C typical |
|
Safe over-range pressure: |
1.5 x rated range minimum |
|
Burst Pressure: |
3 x rated range minimum |
|
Output resistance: |
> 10M W |
|
Insulation / Isolation Resistance: |
> 500M W@ 50V dc |
|
|
|
|
|
