Main engine telegraph is designed for transmit main engine orders from the wheelhouse to the engine room or the centralized control room. The series product adopt special design computer integrated control system, each equipment adopt 6 core were standard interface design, easy to connect with kinds of types transmitters and receivers, can compose different types telegraph systems. This series product with beautiful shape, reliable performance, flexible assembly steps, apply to main engine system for kinds of ships.

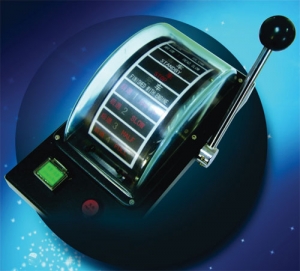

Main Engine Telegraph

●Main Performance Index

■Operating temperature : conform to relevant standard of GJB or CCS standard.

■Protection degrees :  IP22 (bridge instrument ) IP44 (engine room instrument )

■Power supply :  AC220V/50Hz ; DC24V (the two units of power supply can be switchover automatically )

■Alarming type : power failure alarm of main power source, misalignment alarm ( coordinate with the main engine switch).

■Operating steps: 11、13 or customize

■Installing form : Vertical type,  wall-mounting type, embedded type

■VDR digital interface :  RS485, conform to IEC61162 standard.

●Type Explanation

■This type telegraph system consist of telegraph transmitter, telegraph receiver and audible warning device. According to the number of main engines. The telegraph can be named as single handle machine telegraph and double handle machine telegraph.
