The Kwant Controls control units type BUK-G are small sized console mounted lever units designed for propulsion or transverse thruster control. They come in single or double lever execution with either a knob or cross bars. The BUK-G has been type-approved by the leading classification bureaus ABS, BV, CCS, DNV, GL, LRS, NKK , RINA and RMRS.

A typical unit is specified as follows:

1 - Control Unit, type BUK-G, suitable for mounting in a console. The instrument made of seawater proof aluminum alloy and having one peripheral dial. All decorative parts are black anodized.

Description

The instrument equipped with:

a) control lever with a friction device and a palpable stop in zero;

b) transmitter-potentiometer, 2 k.Ohm with center tap;

c) LED dial illumination (24 VDC), dimmable;

d) Standard dials 10-0-10;

e) IP56 protection degree;

f) The control unit is executed with flying leads and terminalstrip.

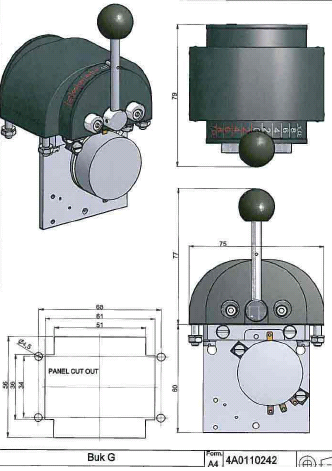

Dimensions according to sketch: 4A0110242

Available options:

· Tandem transmitter potentiometer 2x2Kohm for each lever (adapter plate required);

· Micro switch directional contacts;
